Two Years Warranty Terms
“One year parts with services and second year
service only warranty as per terms & conditions”
Max PV input current 27 Ampre
Designed with 27 A PV Input current compatible to the market trend of incosaned impar solar panel
Interface

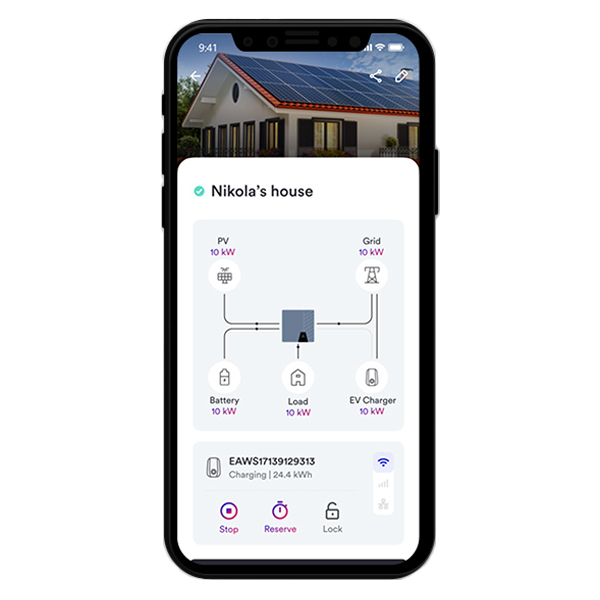

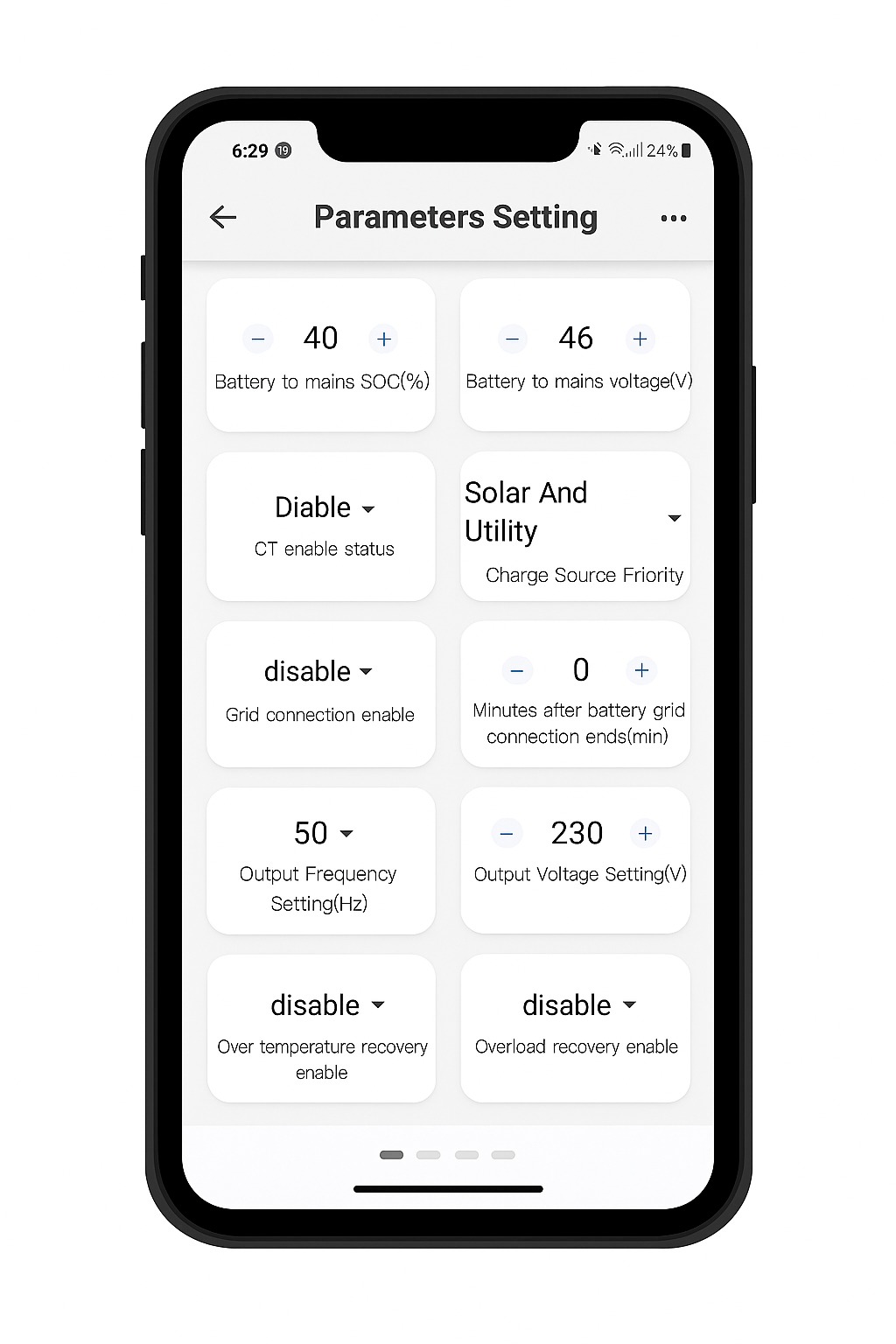

Global cloud platform mobile APP anytime and anywhere open APP, support power internet applications. Interface is only available, when Wifi Card is builtin inverter. Not all Inverter has this option
OFF-Grid and ON-Grid
Sun-Tec HM series is suitable for On-grid. It do not support Export to Grid
Battery 12Vx2 (lead Acid)
Battery equalization functions extend life-cycle Reserved communication port (RS 485, CAN) for BMS
Dual Output
Two outputs for smart load management The second output can be scheduled on & off based on setting point of battery transfer to utility
Protect
Built-in anti-dust kit for harsh environment AC overcurrent, AC overvoltage, over temperature protection
Wifi
Optional Wi-Fi available for IOS/Android devices
Electronic Breaker
Built-in automatic electronic breaker for overload & short circuit protection
Technical Specification HM Series
| Rated Power | 4000VA/4000W |
| AC INPUT | |
|---|---|
| AC Voltage | 230VAC |
| Voltage Range | 170-280VAC (For Personal Computers): 90-280 VAC (For Home Appliances) |
| Frequency Range | 50/60Hz (Auto sensing) |
| AC OUTPUT | |
| Surge Power | 8000VA |
| AC Voltage Regulation (Battery Mode) | 230VAC ± 5% |
| Rated frequency | 50/60Hz |
| Efficiency (Peak) | 93% |
| Transfer Time | 10ms (For Personal Computers): 20ms (For Home Appliances) |
| BATTERY | |
| Battery Voltage | 24VDC |
| Floating Charge Voltage | 27VDC |
| Overcharge Protection | 33VDC |
| Battery type | Lithium/Lead-acid |
| SOLAR CHARGER & AC CHARGER | |
| Maximum PV Array Open Voltage(V) | 500VDC |
| Maximum PV Array Power | 5000W |
| MPPT voltage range(V) | 60-450VDC |
| Maximum input current | 27A |
| MPPT tracker/strings | 1 |
| Maximum solar charge current | 120A |
| Maximum AC charge current | 100A |
| Maximum charge current | 120A |
| PROTECTION & FEATURE | |
| AC overcurrent | Yes |
| AC overvoltage | Yes |
| Over temperature protection | Yes |
| Smart load management | Yes |
| On Grid | Yes |
| Parallel Function | Yes (optional) |
| GENERAL PARAMETERS | |
| Operation temperature | -10°C – 50°C |
| Relative humidity | 5%-95% (Non-condensing) |
| Altitude | (2000m Derating) |
| Dimensions DxWxH(mm) | 466 313 136.5 |
| Net Weight(KG) | 8.5 |
| DISPLAY AND COMMUNICATION | |
| Display | Touch buttons |
| Interface | Standard:RS232, USB, CAN&RS485; Optional:WiFi, Bluetooth |
| Safety standard / IEC | EN/IEC62109-1,EN/IEC62109-2 |
Reseller Offer
Call for Reseller-ship of Product: Sun-Tec Inverters HM series 4KW Solar Hybrid
- Tax Registered Businesses interest in Electronic Goods in desired districts with good financial resources.
- Only two- three Districts to be allocated for first two quarters, extendable when meeting Sales performance targets
- Min volume 50 Products Unit purchase per quarter per district
- Promotional support; Two Standee per District, One Shop panaflex skin (5×2) per District, Social Media Campaigns. More items like Branded Bill book, T-shits will be given on additional targets.
- Expected Wholesale Price range of the Product Rs.135,000- 155,000 per Inverter (Depending upon Customs clearance & USD rate)
- Company may announce surprise incentive or Scheme time to time.
- Advance booking: 10% of the Total Order Booked, & rest of the amount will applicable as per final cleared rate)
- Agreement Draft will be shared for review, when you will share your registered business profile with tax registration certificates & Bank Statements
- Product Specification sheet is attached. However, Company reserved the rights to make minor changes in specification or Inverter outlook.
